STAINLESS STEEL
Discover the unmatched versatility of stainless steel wire, the cornerstone of our product selection. As a leading wire supplier we offer a wide selection of grades and sizes to meet your needs, our inventory features different grades of stainless steel wire available in a wide range of diameters, alloys and customisable designs, catering to a diverse range of needs and preferences.
Some of the most common alloys you can find in our shop are: 304, 304L, 316, 316L, 204Cu, 302, 304Cu; our stock includes wires with electro-polished quality finish.
The diameters we offer are as follows:
Bendable stainless steel wire : Ø 0.7 mm – 20 mm
– 1.4301 / 1.4307 (AISI 304 / AISI 304L) : Ø 0.10 mm – 12 mm
– 1.4404 / 1.4571 (AISI 316L / AISI 316Ti) : Ø 1.5 mm – 10 mm
– 1.4841 / 1.4845 (AISI 314 / AISI 310S) : Ø 1.0 mm – 12 mm
Stainless steel wire for springs : Ø 0.10 mm – 12 mm
– 1.4310 (AISI 302) : Ø 0.20 mm – 8 mm
We do not close doors for other diameters, so if you need other diameters, just ask for them.
Our wire is shaped according to the following standards
– 10270-3 for springs
– 10088-3 for others
Packaging can be in spools, coils or customised bars (if not specified, the normal length for bars is 3 metres).
Chemical Composition
| NEW METAL | Grade | C | Si | Mn | P.max | S (1) | Cr | Ni AISI | – ASTM |
| New Metal 304 | 1.4301 | ≤ 0,07 | ≤ 1,00 | ≤ 2,00 | 0,045 | ≤ 0,030 | 17,0 – 19,5 | 8,0 – 10,5 | 304 |
| New Metal 304L | 1.4307 | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | 0,045 | ≤ 0,030 | 17,5 – 19,5 | 8,0 – 10,0 | 304 L |
| New Metal 316L | 1.4404 | ≤ 0,03 | ≤ 1,00 | ≤ 2,00 | 0,045 | ≤ 0,030 | 16,5 – 18,5 | 10,0 – 13,0 | 316 L |
| New Metal 316 Ti | 1.4571 | ≤ 0,08 | ≤ 1,00 | ≤ 2,00 | 0,045 | ≤ 0,030 | 16,5 – 18,5 | 10,5 – 13,5 | 316 Ti |
| New Metal 204 Cu | 1.4597 | ≤ 0,10 | ≤ 2,00 | 6,50 – 8,50 | 0,04 | ≤ 0,030 | 16,5 – 18,0 | ≤ 2,00 | 204 Cu |
Roll or Coil
A: Coil outside diameter (COD) – 800-900 mm.
B: Coil inside diameter (CID) – 500-550 mm.
C: Coil height (CH) – 500-800 mm.
Euro Coil with cardboard core
Euro Coil without cardboard core
A = coil outer diameter (COD), B = coil inner diameter (CID), C: coil height (CH)

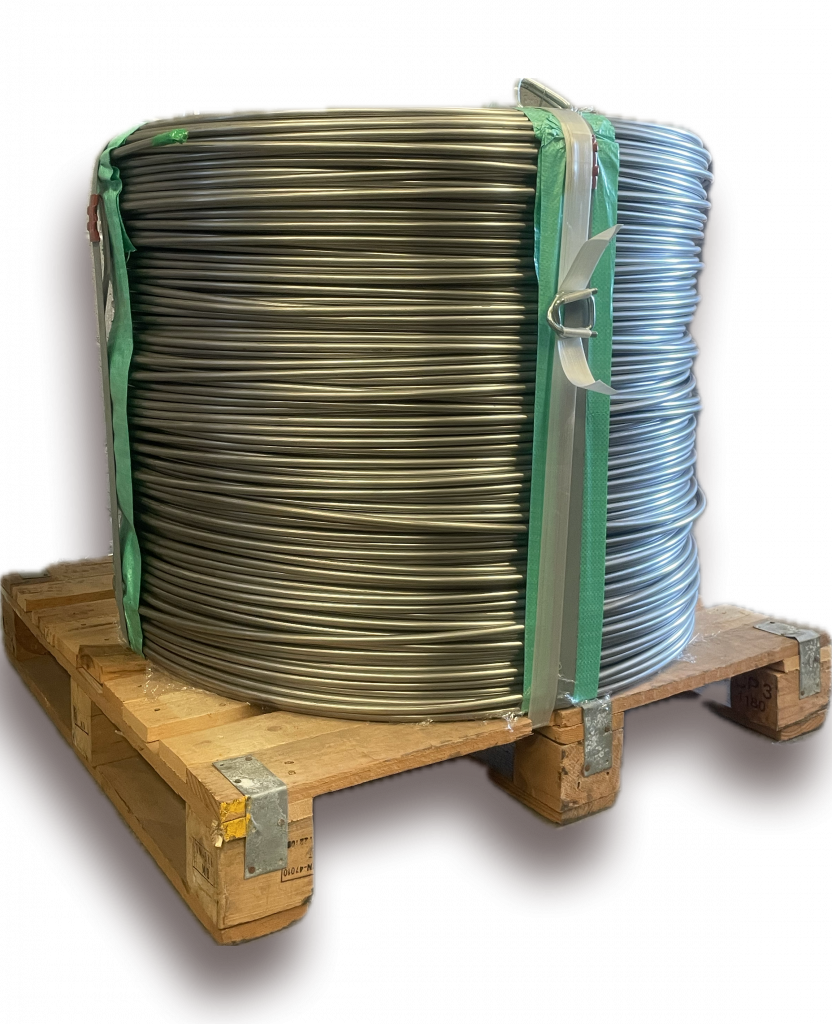

Cardboard core reel on pallet

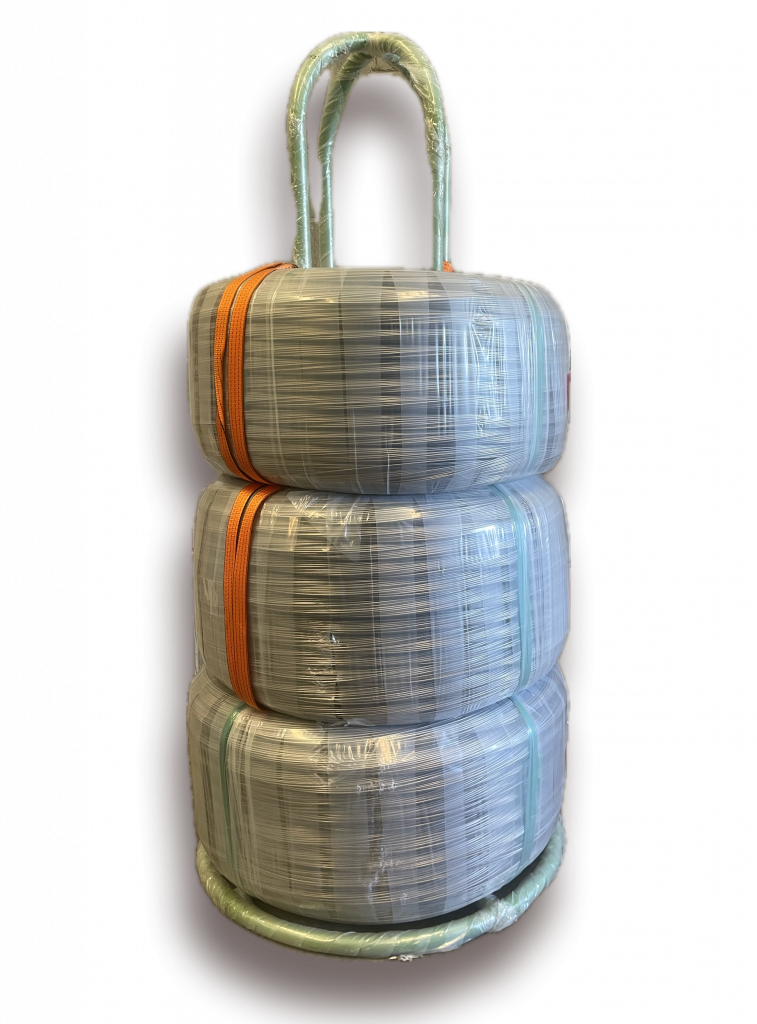

Coil on a crown stand
A = coil outside diameter (ROD), B = coil inside diameter (RID), C = coil height (RH)
Coil type 2
Overview of coils according to DIN
A = core bore diameter
B = core diameter
C = flange diameter
D = angular height
The weight specification refers to the capacity of the respective coil.
Its main sectors of application are the food industry as conveyor belts, hooks, trays or shelves. It is also typically used in household appliances or restaurants as baskets, mixers, grids, trays, trolleys, filters… The construction sector uses the wire for gratings, nails, hooks or staples among others. The application in the automotive sector is usually for products such as cloths, chains, clamps… The agricultural sector is one of the sectors that uses packing wire the most, but you can also find different applications for stainless steel such as security fences or anchor wire. And for the medical or pharmaceutical sector you can find products such as instruments and hospital furniture.
